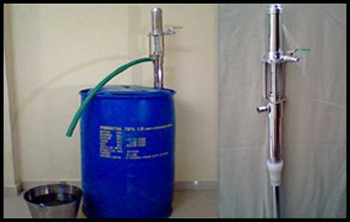

» Air Pneumatic Barrel Pumps SS316 GMP MODEL

The Pneumatic Barrel Pump is Compact Light Weight. This Pump is used for lifting Material Like, Solvents, Methylene Chloride., IP, .Methanol., H.S. Diesel, Oil Jelly, Sorbitol Glycerin, Propylene Glycol, Liquid paraffin , Shampoo, Soap, Resin Etc. This pump with SS316 /construction with simplicity & flexibility allow it for wide Acceptance in Pesticides, Cosmetic food & Pharmaceuticals.

• Silent Features

» Operates with pneumatic pressure
» Operation is compatible with all types of liquid viscous
» Pump head discharge is of 25 feet.The volume of liquid to be delivered can be variable using simple Adjustment of Air flow.Ball Valve Controlling
» Flexibility of operation
» Triclover Joints (TC Clamps)
» Easy to dismantle & Clean as per GMP Requirement

• Construction
The Transmission system is making from special Grade of Brass, Aluminum and the part which comes in contact with liquid are SS 316 / PTFE.

• Optional Accessories
» Flow Control Valve
» FRL unit

• Specification
» Operating pressure 1- 4 kg
» Weight 9 kg
» Head 25 feet.
» Discharge 40 Liters. /min.(2400 Liters/ hrs )

• AIR PNEUMATIC BARREL PUMP SS 316 GMP MODEL DISCHARGE 40 LITERS / MIN.

Easy to dismantle & clean as per GMP RequirementTWO YEARS WARRANTY

• AIR PNEUMATIC HIGH SPEDD DIESEL BARREL PUMP DISCHARGE 40 LITER/MIN.

• AIR PNEUMATIC CREAM & LIQUID PUMP SS316 GMP MODEL

Easy to dismantle & clean as per GMP Requirement.

• APPLICATION

1) Chemical Industries: Solvent , H.S. Diesel, Chemical, Alcohol, Ethyl Acetate, Methanol, Methylene chloride
2) Pharma & Food Industries , Ointment, Cream , Herbal pest, Sorbitol, Glycerin, Liquid Paraffin heavy, Liquid Syrup, Soap Shampoo. solution Raisin. Wax. Etc.
